WEG  Gear WG20




              The helical gear units come in seven housing sizes for nominal torques from 50 to 1550 Nm and are available in both foot and flange designs. While the two smaller gear units (C00 and C01) are able to perform to their full potential with just two stages, the larger C03 to C08 are available in both two and three-stage versions, for those applications in higher torque ranges.
  • Nominal torque: 50 - 1550 Nm
  • Rated power: 0.12 - 22 kW
  • Ratio: 2.44 - 375.71



           Thanks to their structural design, parallel shaft gear units are particularly suitable for conveyor technology applications. All six sizes can be fitted with either a hollow shaft, output shaft, mounting flange or shrink disc. The ratio range of gear unit sizes F04 and F07 can be extended by a third gear stage.

  • Nominal torque: 130 - 1550 Nm
  • Rated power: 0.12 - 15 kW
  • Ratio: 3.85 - 487.67

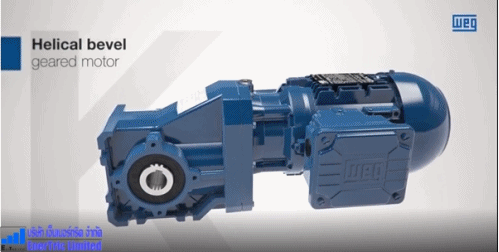

         Helical bevel gear units are suitable for a multitude of applications. The two-stage basic design is extended by a third gear stage upward of 200 Nm. K gear units can also be equipped with a hollow shaft, output shaft, shrink disc, torque arm and mounting flange.

  • Nominal torque: 110 - 1550 Nm
  • Rated power: 0.12 - 15 kW
  • Ratio: 3.82 – 277.79
